How to Put a Turbo on Regression Models
Bootstrap Validation and Cubic Splines for Medical Data
A practical guide for data scientists and clinical researchers working with limited medical datasets
Last updated: December 2025
Author: Michele D. Pierri
Reading time: 15–20 minutes
Introduction — Why regression often disappoints in medicine
Regression models are still the backbone of medical research.
Risk scores, prognostic models, outcome prediction after surgery, ICU mortality, disease progression — all of these rely heavily on regression.
Yet, anyone who has tried to deploy a regression model outside the dataset it was built on knows a frustrating truth:
models that look excellent on paper often perform worse in real patients.
There are two recurring reasons for this failure.
First, models tend to be overconfident. They are evaluated on the same patients they were trained on, which leads to performance estimates that are systematically too optimistic.
Second, models are often too rigid. Continuous clinical variables — age, creatinine, hemoglobin, lactate — are forced into linear relationships that do not reflect physiology.
Bootstrap validation and cubic splines in regression address these two issues directly.
Not by replacing regression, but by making it more honest and more realistic.
The first problem: optimism in clinical models
Imagine building a logistic regression model to predict 30-day mortality after cardiac surgery.
You use 18 preoperative variables, fit the model, and obtain an AUC of 0.85.
This number feels reassuring.
But where does it come from?
Almost always, it comes from evaluating the model on the same dataset used to estimate the coefficients. The model has already “seen” every patient. It has implicitly learned not only the signal, but also the noise.
In clinical terms, this is like testing a diagnostic score on the same cohort that was used to define it.
The result is not wrong — but it is optimistic.
The real question clinicians care about is different:
How will this model behave on the next patient?

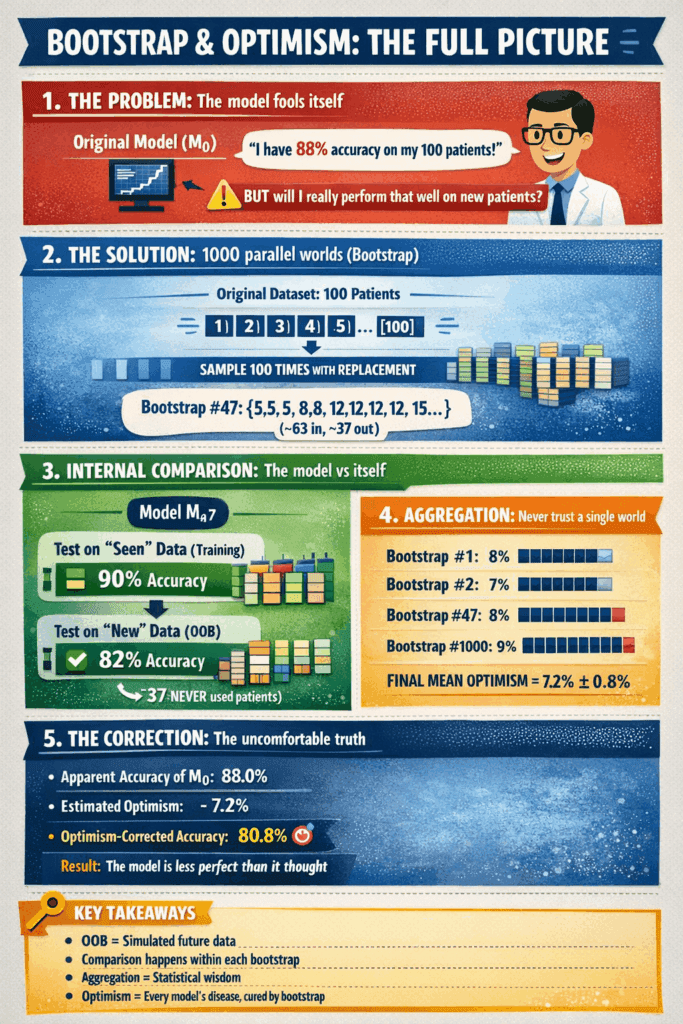

Bootstrap validation: simulating future patients
Bootstrap validation answers this question without requiring an external cohort.
Suppose you have a dataset of 500 cardiac surgery patients.
A bootstrap sample is obtained by randomly drawing 500 patients with replacement from this dataset.
Some patients will appear multiple times.
Others will not appear at all.
On average:
- about 63% of patients are included at least once (this derives from the probability (1-1/n)^n → e^(-1) ≈ 0.632 as n grows large),
- about 37% are left out.
Those left-out patients are called out-of-bag (OOB) observations.
They play a crucial role.
Each bootstrap sample represents a plausible alternative reality in which the same study was conducted, but patient inclusion happened slightly differently.
Where optimism is measured
For each bootstrap sample, we do something very specific:
- We fit the regression model on the bootstrap sample.
- We evaluate its performance on:
- the bootstrap sample itself (patients the model has “seen”),
- the OOB patients (patients the model has never seen).
The difference between these two performances is optimism.
In a mortality model, for example, we may observe:
- AUC = 0.87 on bootstrap data,
- AUC = 0.81 on OOB data.
The optimism for that bootstrap iteration is 0.06.
Repeating this process hundreds or thousands of times produces a distribution of optimism estimates.
Their average represents how much our apparent performance is inflated.
Correcting clinical performance estimates
Once optimism is estimated, correction is straightforward.
If the apparent AUC of the original model is 0.85 and the average optimism is 0.05, the optimism-corrected AUC is:
0.85 − 0.05 = 0.80
This corrected value is a much better approximation of what we should expect in new patients.
This approach is now standard in high-quality clinical prediction modeling and is strongly recommended over split-sample validation when datasets are limited.
The second problem: linearity does not reflect physiology
Even a perfectly validated regression model can still be misleading if its structure is wrong.
Consider age as a predictor of mortality.
Is the risk increase from 40 to 50 the same as from 80 to 90?
Clinically, clearly not.
The same applies to creatinine, lactate, hemoglobin, or blood pressure.
These relationships are nonlinear, often with thresholds, plateaus, or acceleration zones.
Forcing them into a straight line is convenient, but biologically implausible.
Cubic splines: letting data bend smoothly
Cubic splines allow regression models to adapt to nonlinear patterns while remaining smooth and interpretable.
Instead of fitting one equation across the entire range of a variable, splines divide the range into intervals separated by knots.
Within each interval, a cubic polynomial is fitted, but all pieces are constrained to join smoothly.
This ensures:
- continuity of the curve,
- continuity of the first and second derivatives,
- no abrupt changes in slope.
From a clinical perspective, this means:
- no artificial jumps in risk,
- no arbitrary cutoffs,
- a continuous physiological interpretation.
A clinical example: creatinine and mortality
Creatinine often has a weak association with outcome at low values, but risk increases sharply beyond certain thresholds.
A linear term cannot capture this behavior.
A cubic spline can.
Instead of deciding a priori where risk changes, the spline allows the data to reveal the shape of the relationship — smoothly.
Why splines and bootstrap belong together
Cubic splines increase model flexibility.
Flexibility increases the risk of overfitting.
Bootstrap validation controls that risk.
Together, they form a powerful and principled modeling strategy:
- splines improve biological realism,
- bootstrap ensures honest performance estimation.
This combination is common in high-impact clinical models, even if not always explicitly stated.
Common mistakes in medical applications
The most frequent error is using splines without validation.
Flexible models must be validated more carefully, not less.
Another common mistake is replacing continuous variables with categories.
This throws away information and introduces artificial thresholds.
Splines typically outperform categorization in terms of both accuracy and interpretability.
Limitations and When to Use Alternatives
Bootstrap validation and splines are powerful, but not universal solutions.
Computational cost: Bootstrap with 1000 iterations can be slow with large datasets or complex models. If computation is a bottleneck, consider k-fold cross-validation as a faster alternative.
Very small samples: With fewer than 100 observations, bootstrap may be unstable. Leave-one-out cross-validation or penalized regression (ridge, lasso) may be more appropriate.
Rare outcomes: When the outcome occurs in less than 5-10% of cases, stratified cross-validation ensures adequate representation in each fold. Standard bootstrap may occasionally produce samples with very few events.
Interpretation requirements: While spline curves are interpretable, if you need simple risk scores for bedside use (e.g., “add 3 points if age > 65”), linear models with categorization may be more practical despite statistical drawbacks.
The methods described here are most valuable when:
- you have moderate sample sizes (100-5000 observations),
- you need realistic performance estimates,
- biological plausibility matters,
- the model will be used for individual predictions rather than simple screening.
A fully reproducible example: bootstrap and cubic splines on simulated medical data
Step 1 — Create a synthetic clinical dataset
- Age
- Creatinine
- Hemoglobin
- Outcome with nonlinear risk (clinically plausible)
import numpy as np
import pandas as pd
np.random.seed(42)
n = 600
age = np.random.normal(70, 8, n).clip(40, 90)
creatinine = np.random.lognormal(mean=0.2, sigma=0.4, size=n).clip(0.5, 5)
hemoglobin = np.random.normal(13, 1.5, n).clip(8, 18)
# Nonlinear true risk function (unknown to the model)
logit = (
0.04 * (age - 65)
+ 0.8 * np.maximum(creatinine - 1.2, 0) ** 1.5
- 0.25 * (hemoglobin - 13)
)
prob = 1 / (1 + np.exp(-logit))
mortality = np.random.binomial(1, prob)
data = pd.DataFrame({
"age": age,
"creatinine": creatinine,
"hemoglobin": hemoglobin,
"death_30d": mortality
})
data.head()
👉 This dataset is nonlinear by design, just like clinical reality.
Step 2 — Apparent performance of a simple logistic regression
Let’s start with a classic linear model.
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import roc_auc_score
X = data[["age", "creatinine", "hemoglobin"]]
y = data["death_30d"]
model = LogisticRegression(max_iter=1000)
model.fit(X, y)
apparent_auc = roc_auc_score(y, model.predict_proba(X)[:, 1])
print(f"Apparent AUC: {apparent_auc:.3f}")
Result: Apparent AUC: 0.661
This AUC is optimistic: the model is evaluated on the same patients.
Step 3 — Bootstrap optimism correction (fully reproducible)
Now let’s estimate the optimism.
from sklearn.utils import resample
n_boot = 500
optimism = []
for i in range(n_boot):
boot_idx = resample(np.arange(len(data)), replace=True)
oob_idx = np.setdiff1d(np.arange(len(data)), boot_idx)
if len(oob_idx) < 30:
continue
X_boot, y_boot = X.iloc[boot_idx], y.iloc[boot_idx]
X_oob, y_oob = X.iloc[oob_idx], y.iloc[oob_idx]
model.fit(X_boot, y_boot)
auc_boot = roc_auc_score(y_boot, model.predict_proba(X_boot)[:, 1])
auc_oob = roc_auc_score(y_oob, model.predict_proba(X_oob)[:, 1])
optimism.append(auc_boot - auc_oob)
mean_optimism = np.mean(optimism)
corrected_auc = apparent_auc - mean_optimism
print(f"Mean optimism: {mean_optimism:.3f}")
print(f"Optimism-corrected AUC: {corrected_auc:.3f}")
Result: Mean optimism: 0.014 Optimism-corrected AUC: 0.647
Step 4 — Why linear regression is inadequate here
Now let’s look at the true (simulated) relationship between creatinine and risk.
import matplotlib.pyplot as plt
plt.scatter(data["creatinine"], prob, alpha=0.3)
plt.xlabel("Creatinine (mg/dL)")
plt.ylabel("True mortality risk")
plt.title("True nonlinear relationship (unknown to the model)")
plt.show()
No clinician would expect a linear relationship.
Yet the previous model forces it.
Step 5 — Logistic regression with cubic splines
Now we introduce cubic splines.
import statsmodels.api as sm
from patsy import dmatrix
spline_creatinine = dmatrix(
"bs(creatinine, df=4, include_intercept=False)",
data,
return_type="dataframe"
)
X_spline = pd.concat([
data[["age", "hemoglobin"]],
spline_creatinine
], axis=1)
X_spline = sm.add_constant(X_spline)
model_spline = sm.Logit(y, X_spline).fit(disp=False)
pred_spline = model_spline.predict(X_spline)
spline_auc = roc_auc_score(y, pred_spline)
print(f"Spline model apparent AUC: {spline_auc:.3f}")
Result: Spline model apparent AUC: 0.669
The model now adapts to physiology, not the other way around.
Step 6 — Bootstrap validation of the spline model
Flexibility must be paid for with rigorous validation.
optimism_spline = []
for i in range(n_boot):
boot_idx = resample(np.arange(len(data)), replace=True)
oob_idx = np.setdiff1d(np.arange(len(data)), boot_idx)
if len(oob_idx) < 30:
continue
data_boot = data.iloc[boot_idx]
data_oob = data.iloc[oob_idx]
Xb = sm.add_constant(pd.concat([
data_boot[["age", "hemoglobin"]],
dmatrix("bs(creatinine, df=4, include_intercept=False)",
data_boot, return_type="dataframe")
], axis=1))
Xo = sm.add_constant(pd.concat([
data_oob[["age", "hemoglobin"]],
dmatrix("bs(creatinine, df=4, include_intercept=False)",
data_oob, return_type="dataframe")
], axis=1))
yb = data_boot["death_30d"]
yo = data_oob["death_30d"]
try:
m = sm.Logit(yb, Xb).fit(disp=False)
auc_b = roc_auc_score(yb, m.predict(Xb))
auc_o = roc_auc_score(yo, m.predict(Xo))
optimism_spline.append(auc_b - auc_o)
except:
continue
mean_opt_spline = np.mean(optimism_spline)
corrected_auc_spline = spline_auc - mean_opt_spline
print(f"Spline optimism: {mean_opt_spline:.3f}")
print(f"Spline corrected AUC: {corrected_auc_spline:.3f}")
Result: Spline optimism: 0.030 Spline corrected AUC: 0.639
Conclusion — A modern view of regression in medicine
Regression is not outdated.
It is underutilized.
Bootstrap validation teaches regression humility.
Cubic splines give it flexibility.
Together, they transform regression from a blunt instrument into a refined clinical modeling tool.
If regression is the engine of medical prediction,
bootstrap and splines are what finally put the turbo on it.
References and Further Reading
The definitive reference on modern regression techniques in biostatistics, including extensive coverage of splines and bootstrap validation.
Comprehensive guide to building and validating prediction models in medicine, with emphasis on optimism correction.
Efron B, Tibshirani RJ. An Introduction to the Bootstrap. Chapman & Hall, 1993.
The foundational text on bootstrap methods by their inventor.
Essential guidelines for reporting clinical prediction models, emphasizing proper validation.
